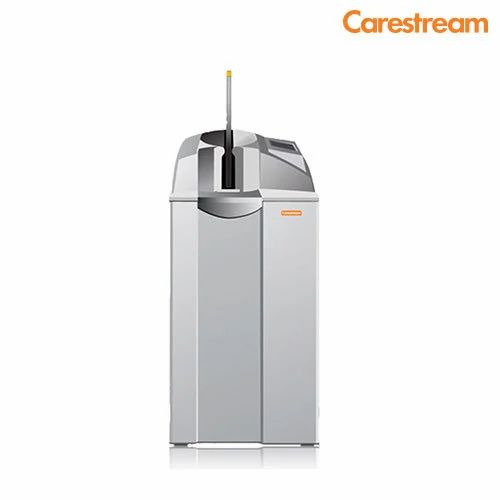

Carestream Directview Classic CR System

Brand Carestream

Throughput 69 Plates per hour

Software Eclipse

Size 24 x 30 cm

Classic CR System handles up to 69 cassettes per hour

Processes 91 cassettes

CarestreamDirectview Classic CR System is designed to streamline patient throughput, speed work­flow and increase cost-efficiency. Three computed radiography models allow you to choose the plates-per-hour performance that matches your facility’s needs. We also offer both single- and multiple-cassette capability. Whatever your CR choice, you can count on excellent image quality, a space-saving footprint and easy, user-friendly operation.

Specifications:

Improved Workflow and Patient Throughput:

Classic and Elite CR Systems are small, easy to install and simple to use. These distributed computed radiography systems produce high-quality images, yet have footprints small enough for an X-ray room or an X-ray control console room.

Two CR solutions offer an identical set of high-performance features, with two throughput options:

The Classic CR System handles up to 69 cassettes per hour,* making it ideal for small and mid-sized facilities

Details 18 x 24 cm 24 x 30 cm 14 x 14 in 14 x 17 in 15 x 30 in 35 x 84 in

(35 x 35 cm) (35 x 43 cm) (Dental) (Long-Length)

Classic CR 77 58 77 69 92 68

Multiple-Cassette Performance for Maximized Throughput:

The Directview Max CR System is an ideal solution for even the highest-volume imaging facilities. It combines exceptionally fast throughput with superb image quality. This system is loaded with capabilities to optimize your productivity and workflow:

Processes up to 91 cassettes an hour and handles 16 cassettes at one time – the highest capacity in the industry

Elevates productivity with true “drop-and-go” cassette processing, which reduces radiographer queuing and waiting at the reader

Allows image review in as little as 34 seconds and cassette reuse in 40 seconds

Uses a wide range of industry-standard cassette sizes

Enables techs to work from a remote operations panel

Offers a robust user interface, rapid image processing, and a range of software options and tools

When using a 35 cm x 43 cm cassette. Times for other cassette sizes are the same or less. Time for image access on a network device is dependent on network performance.

Features:

A robust user interface, rapid image processing, and a range of software options and tools

Fast and easy installation

EVP-Plus Image-Processing Software with Enhanced Frequency Processing (EFP) reduces capture set-up times and boost overall quality – saving time and helping improve diagnoses

A choice of configurations: 19-inch flat-panel monitor, 19-inch flat-panel monitor with touchscreen, or high-megapixel monitor

Flexible monitor and/or keyboard options allow installation on a floor-stand console or a space-saving wall mount

DICOM and IHE functionality and connectivity
